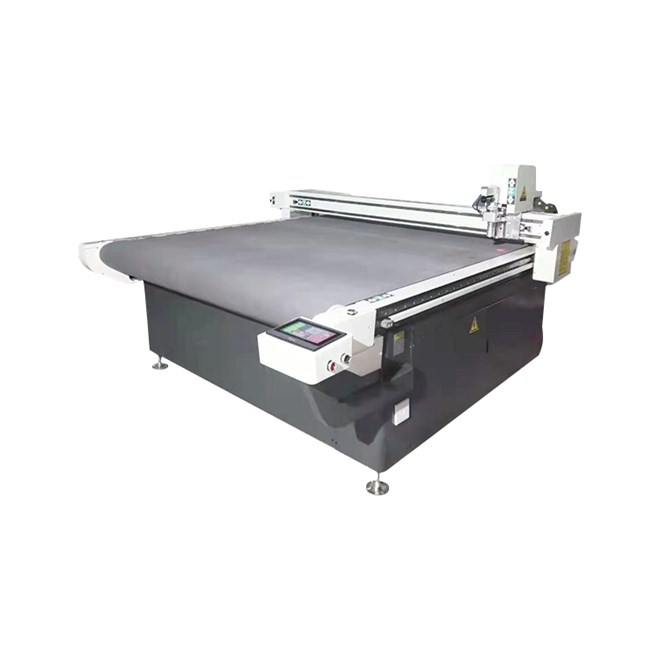

Description & Specifications of quoted machine with vibrating tool+creasing wheel:
X working size
1550mm
Y working size
2500mm
Z working size
10mm
Cutting head
cnc oscillating knife cutting head + creasing roller
Display way
English LED touch screen
Machine table
Suction Table, suitable for textile, sponge, foam, corrugated board, paper, plastic film and other material
Data transfer way
Intel
Vacuum pump
9KW air type vacuum pump
Driving system
Taiwan delta servo driver and motor
Control system
RD 6 axis ontrol system
Guiding system
Taiwan TBI square rail
Tool sensor
With, red dot
Transmission
Y rack pinion, XZ synchronous steel belt
Cutting speed
30m/min
Traveling speed
50m/min
Weight
About 800kgs
Size
2250*3300*1650mm
Power
380V 50HZ 3 phase/ 220v 50HZ 3 phase
Software
Equipped with machine
